£1,887.86 exc. VAT

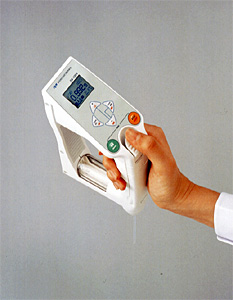

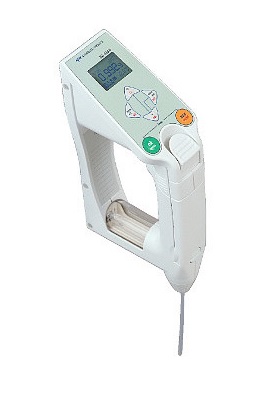

The portable DA-130 density/specific gravity meter is an ideal tool for quick and accurate measurements of liquids of different viscosities.
FEATURES:
-Portable handheld instrument
-Left or right handed operation
-Resonant frequency detection action
-Quick & easy sampling
-Fast results with multiple measurement ranges
-Backlit graphic LCD display
-Infrared data communication port
Technical Specifications
| Measuring principle | Oscillating u-tube | |
| Supported measuring units | Density, Specific Gravity, Ethanol Content (wt% and vol% at 15 and 20 °C), Proof (IP and US at 60 °F), API degree or density at 15°C or 60 °F for product groups A (crude oil), B (fuel and petroleum products) and D (lubricants) Brix, Baumé (light, heavy), °Plato, H2SO4 (wt%), user defined concentration |
|
| Measuring range | Density [g/cm³] Specific Gravity Ethanol Content (wt%, vol%) [%] Proof (IP) Proof (US) Brix [%] Baumé light [°] Baumé heavy [°] Plato [°] H2SO4 (wt%) [%] |
0.0000 … 2.0000 0.0000 … 2.0000 0.0 … 100.0 0.0 … 175.0 0.0 … 200.0 0.0 … 75.0 10 … 100 0 … 72 0.0 … 20.0 0.0 … 100.0 |
| Limit of error | Density [g/cm³] Specific Gravity Ethanol Content (wt%, vol%) [%] Proof (IP) Proof (US) Brix [%] Baumé light [°] Baumé heavy [°] Plato [°] H2SO4 (wt%) [%] |
±0.001 ±0.001 ±1.0 ±1.75 ±2.0 ±0.3 ±0.4 ±0.1 ±0.3 ±1.0 |
| Resolution | Density [g/cm³] | 0.0001 |
| Temperature range (sample) | 0 … 40 °C | |
| Temperature indication resolution | 0.1 °C | |
| Display contents | Measuring value, Temperature (°C or °F), sample number, stability of measuring value, temperature compensation coefficient, data storage, data output, data deletion, battery alarm |
|
| Data storage | 1’100 measurement results | |
| Printer | IDP-100 dot matrix | included |
| Temperature compensation | API | Brix | Ethanol, Proof | Plato | H2SO4 Density | Spec. Gravity | Baumé | Conc. |
automatic 10 user defined constants |
| Interface | IrDA (V1.2) Data output to printer or computer |
IrDA – RS converter required (option) |
| Ambient conditions | Temperature Humidity |
5 … 35 °C 85% RH max. (no condensation) |
| Power supply | Batteries Lifespan of batteries |
2*AAA (alkaline) approx. 90 hours |
| Weight | approx. 360 g |
| Manufacturer |
|---|
