Description

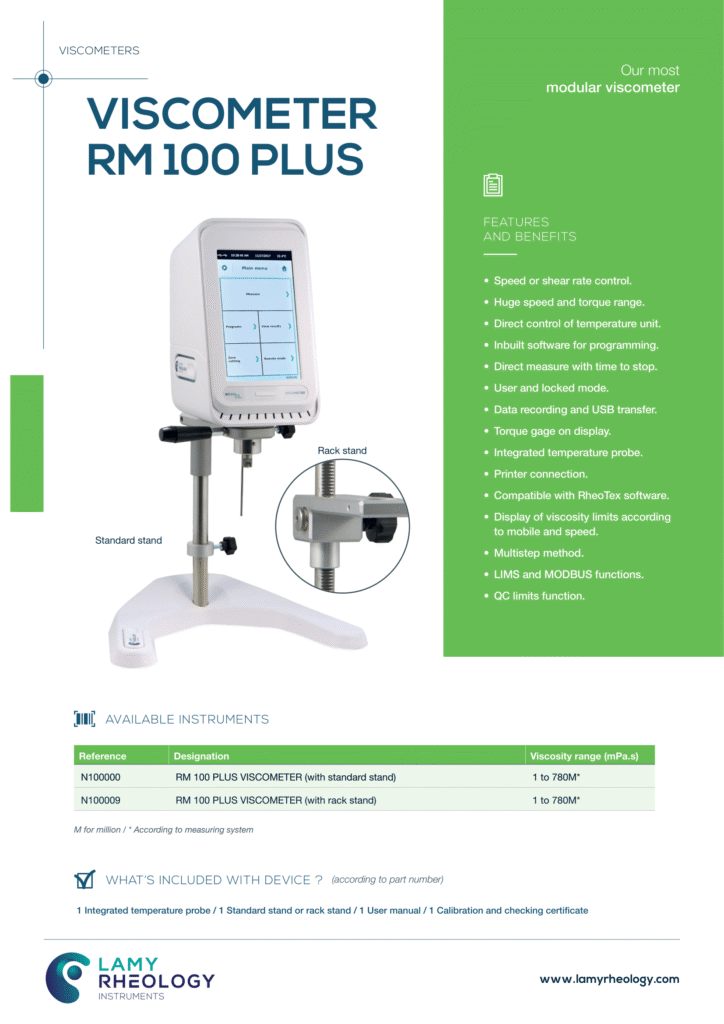

VISCOMETER PACKAGES
Designation | Viscosity range (mPa.s) |
---|---|

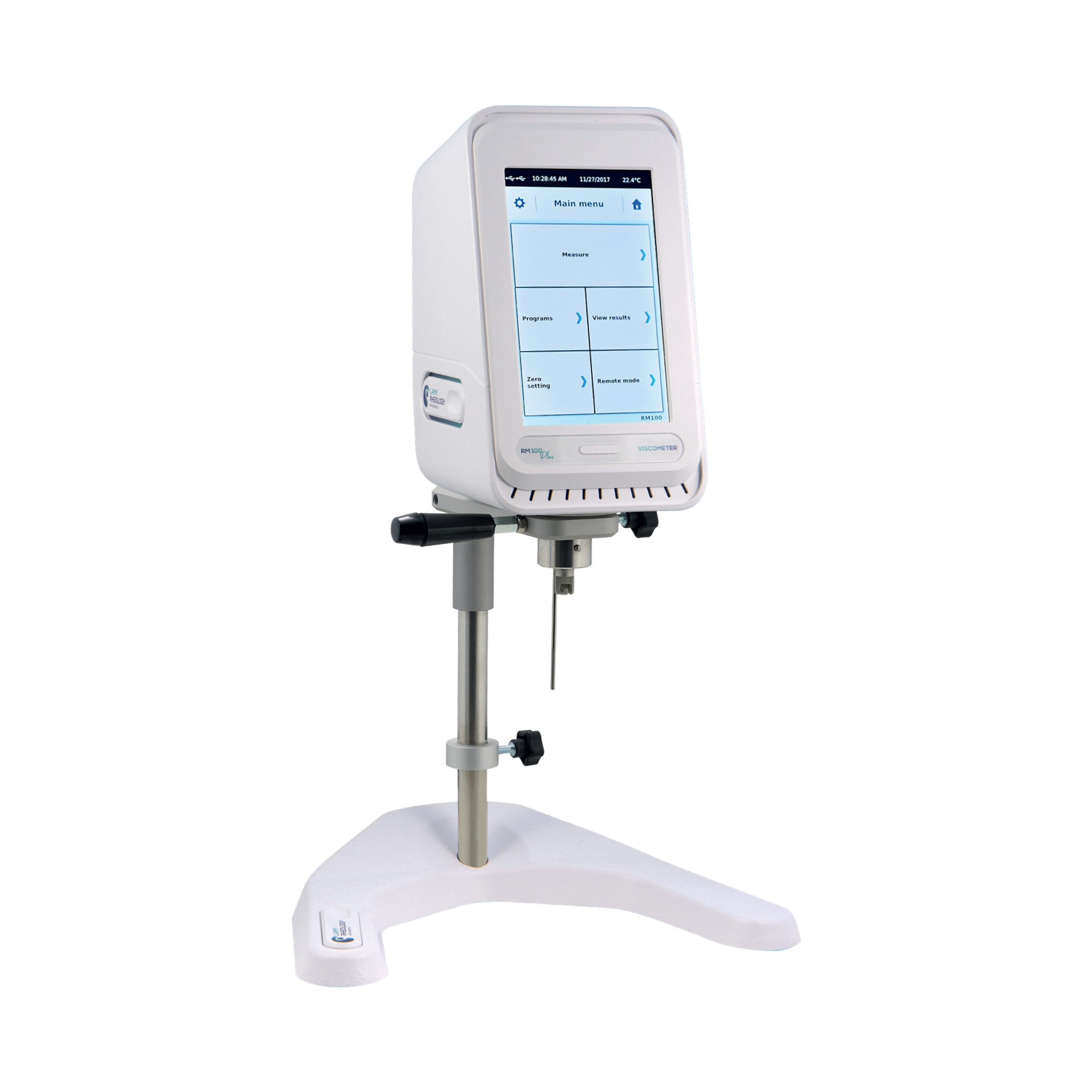

RM 100 PLUS VISCOMETER (with standard stand) | 1 to 780M* |
RM 100 PLUS VISCOMETER (with rack stand) | 1 to 780M* |
NEED HELP FINDING THE BEST SETUP FOR YOUR VISCOMETER?
Our Team will go through your specific requirements and offer the best solution possible.
VISCOMETER STAND OPTIONS

STANDARD STAND
The standard stand allows you to install your viscometer or rheometer on table.
Thanks to its stop ring, it is recommended when the height of the measurement position is constant. Included according to instrument model, it includes a rod, a stop ring, a safety sleeve, a arm and a base

RACK STAND
The rack stand allows you to install your viscometer or rheometer on table.
Thanks to its notched rod system, it allows easy vertical movement of measuring head and is recommended when height of measuring position varies according to container or measuring spindle used. Included according to
instrument models, it includes a notched shank, arm and base.
VISCOMETER SPECIFICATION
Type of instrument
Rotating springless viscometer with 7’’ Touch
screen
Rotation speeds
Unlimited number of speeds between 0.3 and
1500 rpm
Torque range
From 0.05 to 30 mNm
Temperature :
Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Accuracy
+/- 1 % of the full scale
Repeatability
+/- 0,2 %
Norms
ASTM : D115 ; D789 ; D1076 ; D1084 ;
D1337 ; D1338 ; D1417; D1439 ; D1824 ;
D2196 ; D2243 ; D2364 ; D2556 ; D3288 ;
D3468 ; D3716 ; D3730 ; D3794 ; D4016 ;
D4143 ; D4878 ; D4889 ; D5324 ; D5400 ;
D6279 ; D6577 ; D7394 ; D8020 ; E2975 ;
F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-
1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219
; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ;
IOCCC 2000 ; ISO 1652 ; 2555 ; 2884-2 ;
3219; 10364-12
Display
Viscosity (cP / Poises or mPa.s / Pa.s)
Speed – Shear rate – Torque (% – mNm) –
Shear stress – Time – Temperature
Languages
French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese
Supply voltage
90-240 VAC 50/60 Hz
Connection
RS232, USB and
Ethernet
Printer connection :
USB Host Port – Compatible PCL/5
Dimensions and weight
Head: D180 x H230 x W130 mm
Alluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg
Compatible measuring systems :
MS DIN, MS RV/LV, MS BV, MS VANE, MS ULV, MS KREBS, MS SV.
Compatible temperature control :
EVA MS-DIN PLUS, EVA LR-BV PLUS, RT-1 PLUS.
