WE EQUIP YOUR LABORATORY WITH SPEED AND EFFICIENCY

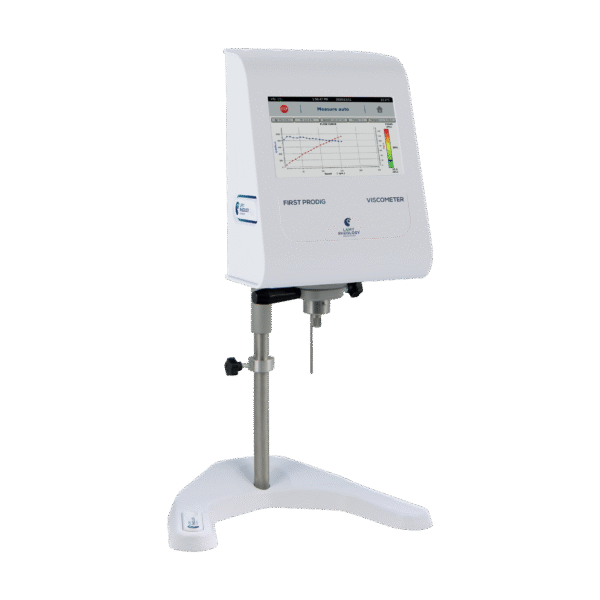

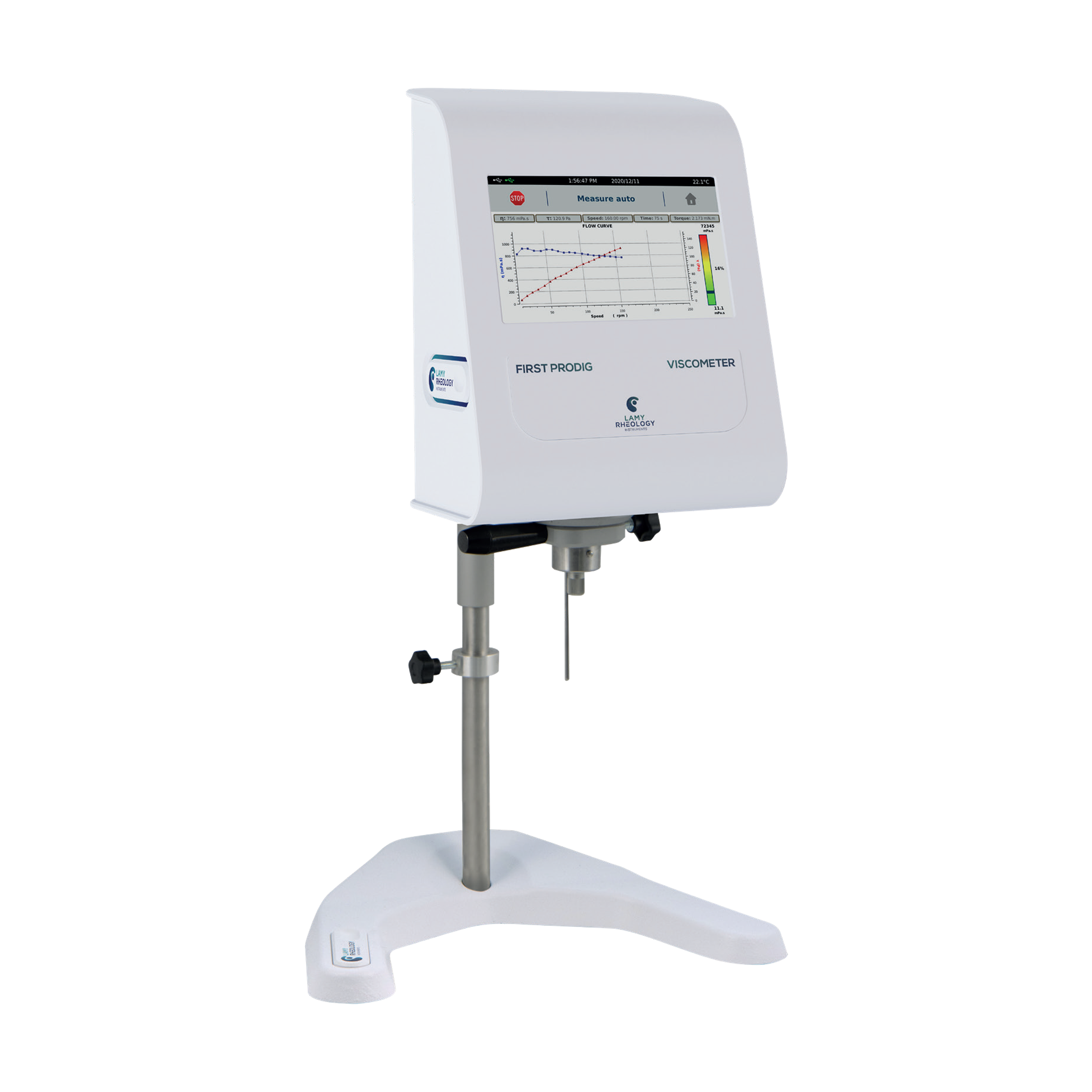

FIRST PRODIG VISCOMETER

£5,147.10£5,313.00 exc. VAT

The viscometer with a 7 ‘’ touch screen allows you to create and save your measurement methods, display results or curves, analyse your data, print reports, manage users and protect data.

  • Speed or shear rate control.
  • Programming and recording method.
  • 1 point, multistep and ramp methods.
  • Direct curve on display.
  • Direct analysis with regression.
  • Direct report editing.
  • Direct measure with time to stop.
  • Data recording and USB transfer.
  • Integrated temperature probe.
  • Printer connection.
  • Display of viscosity limits according to mobile and speed.
  • LIMS function.
  • QC limits function.
Product Code: N/A Categories: ,
Lamy logo

Description

VISCOMETER PACKAGES

Designation
Viscosity range (mPa.s)
FIRST PRODIG VISCOMETER WITH SPINDLE RV-2 TO RV-7 (with standard stand)
200 to 240M
FIRST PRODIG VISCOMETER WITH SPINDLE RV-2 TO RV-7 (with rack stand)
200 to 240M
FIRST PRODIG LR VISCOMETER WITH SPINDLE LV-1 TO LV-4 (with standard stand)
15(1*) to 22M
FIRST PRODIG LR VISCOMETER WITH SPINDLE LV-1 TO LV-4 (with rack stand)
15(1*) to 22M

NEED HELP FINDING THE BEST SETUP FOR YOUR VISCOMETER?

Our Team will go through your requirements specific and offer the best solution possible.

VISCOMETER STAND OPTIONS

Support cremaillere small e1728903751398
STANDARD STAND

The standard stand allows you to install your  viscometer or rheometer on table.

Thanks to its stop ring, it is recommended when the height of the measurement position is constant. Included according to instrument model, it includes a rod, a stop ring, a safety sleeve, a arm and a base

Support standard small e1728903780121
RACK STAND

The rack stand allows you to install your viscometer or rheometer on table.

 Thanks to its notched rod system, it allows easy vertical movement of measuring head and is recommended when height of measuring position varies according to container or measuring spindle used. Included according to
instrument models, it includes a notched shank, arm and base.

VISCOMETER SPECIFICATION

Type of instrument
Rotating springless viscometer with 7’’ Touch
screen

Rotation speeds
Unlimited number of speeds between 0.3 and
250 rpm

Torque range
Standard Version: 0.05 to 13 mNm
LR version: 0.005 to 0.8 mNm

Temperature :
Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C

Accuracy
+/- 1 % of the full scale

Repeatability
+/- 0,2 %

Norms

ASTM : D115 ; D789 ; D1076 ; D1084 ;
D1337 ; D1338 ; D1417; D1439 ; D1824 ;
D2196 ; D2243 ; D2364 ; D2556 ; D3288 ;
D3468 ; D3716 ; D3730 ; D3794 ; D4016 ;
D4143 ; D4878 ; D4889 ; D5324 ; D5400 ;
D6279 ; D6577 ; D7394 ; D8020 ; E2975 ;
F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-
1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219
; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ;
ISO 1652 ; 2555 ; 2884-2 ; 3219 ; 10364-12

Display
Viscosity (cP / Poises or mPa.s / Pa.s)
Speed – Shear rate – Torque (% – mNm) –
Shear stress – Time – Temperature

Languages
French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese

Supply voltage
90-240 VAC 50/60 Hz

Connection
RS232, USB and
Ethernet

Printer connection :
USB Host Port – Compatible PCL/5

Dimensions and weight
Head: D160 x H270 x W200 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg

Compatible measuring systems :
MS DIN, MS RV/LV, MS BV, MS VANE, MS ULV, MS KREBS, MS SV.

Compatible temperature control :
EVA MS-DIN PLUS, EVA LR-BV PLUS, RT-1 PLUS.

NEED HELP ?

Fill in the form and our team of experts will recommend the best viscometer and setup based on your requirements.

Additional information

Viscometer Functions

7’’ Touch Screen, Curve On Display, Data Analysis, Data Memorisation, Data Transfer, Data/User Security, Inbuilt Software For Programming, LIMS, Manage Temperature Unit, Multi Interval Method, Multi Languages, Printer Connection, QC Limits, Ramp Method, Rheotex Compatibility, Temperature Probe, Time To Stop Method, USB Flash Drive Port, USB/RS232 Connection, Viscosity Limits
