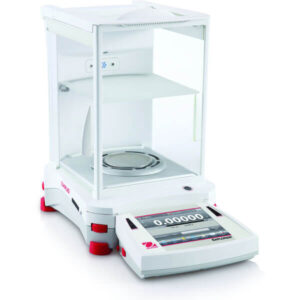

Pioneer Analytical PX224M

£1,915.00 exc. VAT

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Product Code: SSOHS655 Category:


Pioneer? Analytical

The PX offers high accuracy and repeatability for essential weighing applications in laboratory, industrial and education settings at an economical price point.

Featuring a cast metal lower housing, sub-pan and stainless steel weighing pan, the PX is durably constructed for versatile, long-term use.

PX features a second line display for additional information/guidance, & USB/RS232 connectivity for easy communication. Draftshield models feature a static removal (ESR) bar for convenient grounding.


Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination


Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

Display: Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Communication: RS232 and USB device (included); GLP/GMP data output with real-time clock
Operation: AC adapter (included)
Maximum Capacity: 220 g
Readability: 0.0001 g
Pan Size: 90 mm
Internal Calibration: InCal? ? Semi Automatic
Draftshield: Included
Legal for Trade: OIML
Auxiliary Display Model: Available as an Accessory
Dimensions: 321 mm x 309 mm x 209 mm (LxHxW)
Tare Range: To capacity by subtraction
Working Environment: operability guaranteed between 41°F and 104°F;50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;10°C – 30°C, 80%RH, non-condensing)
Net Weight: 10 lb (4.5 kg)
In-Use Cover: Included
Communication: USB;RS232
Power: AC Adapter (Included)
Units of Measurement: Milligram;Gram;Carat
Minimum Weight (USP, 0.1%, typical): 200 mg
Display: 2-Line LCD with Backlight
Pan Construction: Stainless Steel
Stabilization Time: 3 s
Repeatability, typical: 0.0001 g
Linearity : 0.0002 g
