Description

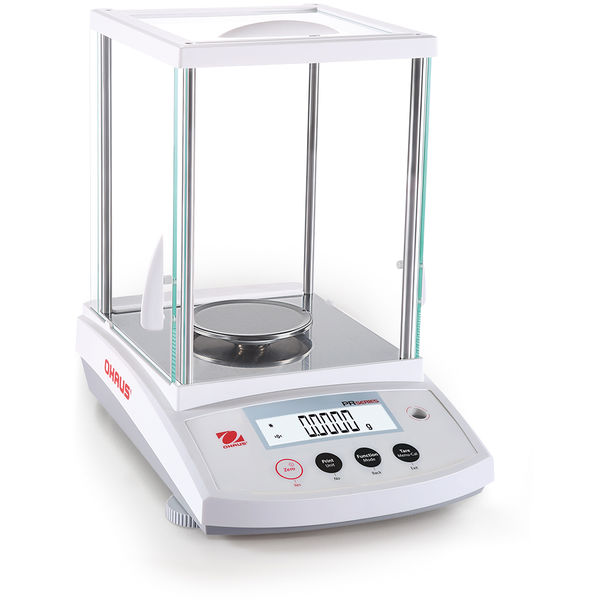

PR Series Analytical
The PR is equipped with 3 essential weighing modes, RS-232 connectivity for data transfer and storage, and internal calibration (in select models), making it ideal for routine weighing applications.
Equipped with an easy-to-read, bright backlit display and a simple user interface, the PR is incredibly easy to operate, with almost no training required.
The PR’s small footprint saves desktop space while providing a large weighing surface. The PR is durably constructed, and features a stainless steel pan to withstand day-to-day use in the workplace.
Applications
Basic Weighing, Parts Counting, Percent Weighing
Construction
ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator
Display: Backlit Liquid Crystal Display (LCD)
Communication: RS232 (one port included)
Operation: AC adapter (included)
Maximum Capacity: 120 g
Readability: 0.0001 g
Pan Size: 3.5 in (90 mm)
Internal Calibration: InCal™ – Semi Automatic
Draftshield: Included
Legal for Trade: No
Auxiliary Display Model: Available as an Accessory
Dimensions: 12.5 in x 11.9 in x 7.9 in (317 mm x 303 mm x 201 mm) (LxHxW)
Tare Range: To capacity by subtraction
Working Environment: operability guaranteed between 41°F and 104°F;50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;10°C – 30°C, 80%RH, non-condensing)
Net Weight: 10 lb (4.5 kg)
In-Use Cover: No
Communication: RS232
Power: AC Adapter (Included)
Units of Measurement: Milligram;Pennyweight;Ounce Troy;Newton;Taiwan Tael;Gram;Grain;Ounce;Carat;Custom
Minimum Weight (USP, 0.1%, typical): 200 mg
Display: LCD with backlight
Pan Construction: Stainless Steel
Stabilization Time: 3 s
Repeatability, typical: 0.0001 g
Linearity : 0.0002 g
