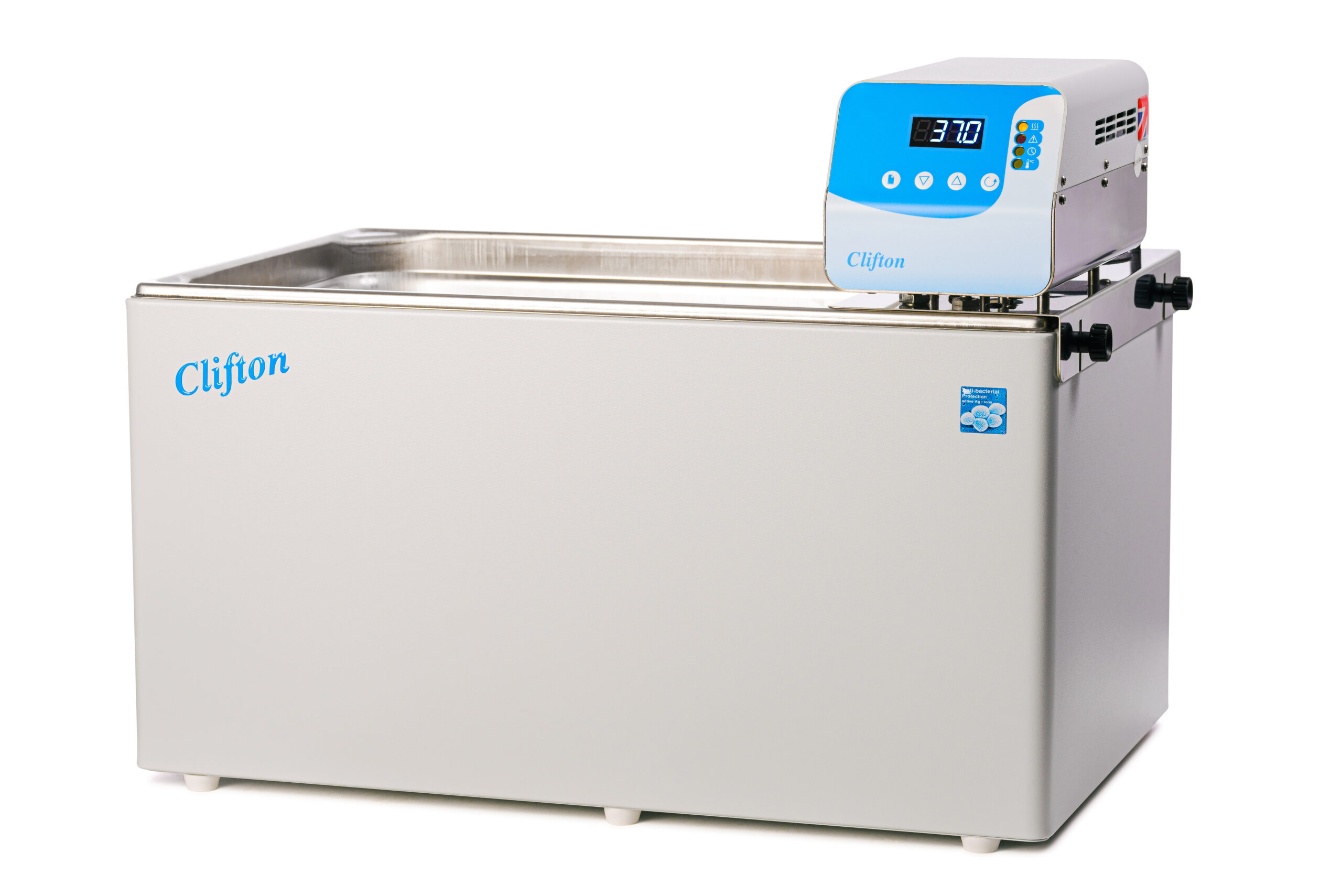

Clifton stirred water baths feature a digital PID temperature controller and are designed to immerse flasks, bottles and racks in an accurate temperature environment throughout the bath.
Clifton stirred baths are constructed using durable stainless steel, and painted surfaces are powder-coated with a tough anti-bacterial finish and good chemical resistance. Easy-to-use controls that wipe clean also have an anti-bacterial finish. Immersed components are corrosion resistant.
The stainless steel tank is housed in a sturdy outer case and is supplied complete with a stainless steel shelf, which provides even water circulation and temperature stability.
£1,041.13 exc. VAT
Stirred Clifton water baths feature a digital PID temperature controller and are designed for immersion of flasks, bottles and racks in an accurate temperature environment throughout the water bath.
3 Year Warranty
Before leaving the factory, every water bath is identified with a unique serial number and undergoes a factory calibration, adjusting the control to a known traceable value. Each is electrically tested for safety during the final inspection, and a test certificate is enclosed in the rear of the instruction book.
Efficient water movement and temperature control provides accurate temperature stability throughout the water bath.
Broad range of accessories available to suit wide range of applications.
Painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments.
Energy Consumption
0.5kWh @ 37°C
(Based on NE4-8D)
Please note that energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.
Controls
Each water bath features a bold LED display of measured temperatures in real-time and in increments of ±0.1°C, using a precision PID temperature controller. Option to set for water temperature only or a combination of temperature and time. Timer setting variable in 1-minute increments from 00:01 to 99:59 (hh:mm). Time and temperature settings are retained in the memory, even after the unit has been turned off. Every bath undergoes a factory calibration at 37°C and 85°C for validation.
Heating/Cooling Information
An accessory immersion cooler DC1-300 is used to cool the water bath. Where bath temperatures are below ambient, we recommend a mix of glycol and water. We also recommend a lid or layer of spheres for insulation. The water bath should be used in ambient temperature (20°C). For water temperatures above 60°C we recommend that an accessory lid or layer of spheres be used for optimum performance. This will reduce evaporation and a lid will keep the samples and water free from contamination. Optimum performance saves energy by reducing electricity consumption and running costs.
 |
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|---|
| Product Code | NE4-8D | NE4-14D | NE4-22D | NE4-28D | NE4-38D | NE4-56D | |
| Chamber Capacity | 8 Litres | 14 Litres | 22 Litres | 28 Litres | 38 Litres | 56 Litres | |
| Temperature Range | Ambient + 5°C – 99°C | ||||||
| Temperature Control | PID Digital, LED display showing actual or set temperature, resolution 0.1°C | ||||||
| Temperature Alarm | Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point | ||||||
| Sensitivity | ±0.05°C | ±0.2°C | |||||
| Uniformity | ±0.01°C | ±0.02°C | |||||
| Timer | Variable, 00:01 to 99:59 hh:mm | ||||||
| Heater Power (220-240V) | 1250W | 2000W | |||||
| Voltage | 120V or 230V models available 50-60Hz | 230V / 50-60Hz | |||||
| Drain Outlet | ❌ | ✅ | |||||
| Dimensions | |||||||
| External (mm) | 271w x 332d x 170h | 361w x 332d x 170h | 537w x 322d x 170h | 537w x 332d x 290h | 715w x 330d x 235h | 660w x 540d x 290h | |
| Internal (mm) | 129w x 300d x 150h | 219w x 298d x 150h | 395w x 298d x 150h | 395w x 298d x 200h | 570w x 295d x 200h | 490w x 500d x 200h | |
| Water Level Max. (mm) | 130 | 180 | 195 | 180 | |||
| Max Depth Above False Base (mm) | 95 | 145 | 155 | 145 | |||
| Manufacturer |
|---|
