Cruma vented storage cupboard is based on the technology used in our aspiration and filtration fume hoods. This is composed of a ventilation system in addition to a filtration system that prevents the inflammable, corrosive and/or toxic products from building up inside the cupboard or from being released into the laboratory or work space.
Thanks to the Cruma 2010 vented storage cupboard is it possible to store liquid reagents as this eliminates inflammable, corrosive and toxic fumes through chemical adsorption in a specific activated carbon filter without having to be connected to the outside. All of this complies* with the requirements and recommendations set out in International Standards, AFNOR NF X 15-211 (Class 2), BS 7258, CSAZ 316.5, EN-1822 and EN-141.
Call for Price
Cruma vented storage cupboard can be used in difficult access areas , such as the lower floors of buildings with narrow accesses and/or stairs, and it can be placed in different locations, which it means that it can be easily relocated if needed.

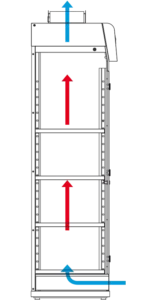

In addition to facilitating storage in the laboratory, chemical vapors that may escape from the bottles are not released to the outside but are retained within an active carbon filter or zeolite.
No expensive works are necessary to install conduits to extract the gas to the outside which means there are no additional costs and no need to interrupt a laboratory working at full capacity.
Unlike traditional storage cupboards, our vented storage cupboard do not use the air conditioning inside the laboratory, which substantially reduces energy costs. The aspirated air is not expelled outside but recirculated back into the laboratory free from contaminating substances.
More information on the new LCD display
New features and components
Alarms and scheduled warnings
Available Filters:
The Cruma 2010 vented storage cupboard are designed to ensure that no handling operations are necessary once these have been received: all you have to do is take them out of their fantastic packaging, place them in the desired spot, plug them into the mains and get to work. As simple as plug in and play.
Our vented storage cupboard use the new filtration system, developed and patented by Cruma (Invention Patent), which protects the operator by retaining the contaminating gas and fumes generated inside from stored botles, constantly renewing the air inside the laboratory and avoiding leaks that may contaminate the environment.
| Model | 2010 |
| Internal Sizes (Width/Depth/High) | 732x460x1388 |
| External Sizes (Width/Depth/High) | 800x548x1845 |
| Filtering columns | 1 |
| Filter number | 1 a 2 |
| Fans | 1 |
| Average volume of treated air/hour | 160 m3/h |
| Average face velocity | 0.50 m/s |
| Internal volume of the cabinet | 0.567m3 |
| Renewals inside the cabinet/min. | 4.6 ren./s |
| Total electrical power consumption | 91 W |
| Voltage-Frequency | 110-220 V / 50-60 Hz |
| LED light intensity | 800Lux / LED 16 W |
| Shelves | 4 |
| Noise level | 48 dB |
| Weight | 150 Kg |
| Packaging volume | 1.1 m3 |
| Equipment | Description |
|---|---|
| Electronic circuit with large format LCD screen | Security levels: level 1 for users and level 2 for maintenance users |
| Anemometer device | Electronic sensor monitoring continuously air face velocity |
| Electronic control device for filters replacement | The filters incorporate a microchip with miniUSB connection that identifies the type of filter installed, the expiry date and the serial no. |
| Illumination | 96 LED Tube high light intensity and low power consumption – 16 Watts / 700 Lux |
| Sampling system to analize the filtered air at the exhaust | To detect the level of filter saturation |
| 60 hours alarm | Countdown timer according to French NF X 15-211:2009 |
| Electronic cronometre with audible alarm | To program the work inside the fume hood |
| Clock and calendar | Display of date and time |
| G4 Prefilter | G4 class pre-filtering blanket of synthetic biofibres (according to EN-779) for the retention of atmospheric dust |
| Chemical Listing | Guide of retained products by type of filter |
| Warranty | 10 years |
Optional Equipment
| Equipment | Description |
|---|---|
| Voltage / Frequency | 125 V / 50 Hz |
| Filter test kit | Dräger pump with reactive colorimetric tubes (pack 10u) |
