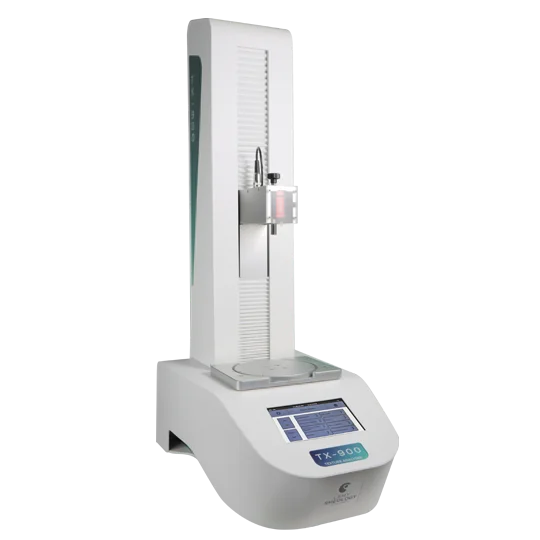

With its wide range of probes and cells, the New TX-900 texture analyzer is the ideal tool for your texture analysis with its 400mm travel distance. Thanks to its touch screen directly displaying the curves, its method programming capability, storage and analysis of measurements, the TX-900 will integrate in laboratory and production area.
£14,045.70 exc. VAT
Reference | Designation |
|---|---|
SSLMY1710 | TX-900 TEXTURE ANALYZER – 10N |
SSLMY1711 | TX-900 TEXTURE ANALYZER – 20N |
SSLMY1712 | TX-900 TEXTURE ANALYZER – 50N |
SSLMY1713 | TX-900 TEXTURE ANALYZER – 100N |
SSLMY1714 | TX-900 TEXTURE ANALYZER – 250N |
SSLMY1715 | TX-900 TEXTURE ANALYZER – 500N |
Our Team will go through your specific requirments and offer the best solution possible.
Type of instrument
Texture Analyzer operating in Compression and Traction with 7” Touch screen
Choice of Sensors
10 N (1 kg), resolution 0.001 N (0.1 g) – 20 N (2 kg), resolution 0.001 N (0.1 g) – 50 N (5 kg), resolution 0.001 N (0.1 g) – 100 N (10kg), resolution 0.001 N (0.1 g) – 250 N (25 kg), resolution 0.01 N (1 g) – 500 N (50 kg), Resolution 0.01 N (1 g)
Speed range
From 0.1 to 10 mm/s +/-0.2 %
Accuracy
+/- 0.5 % of the full scale
Motion
Height: 400 mm / Resolution: 0.1 mm
Temperature
Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Display
Strength – Speed – Distance – Temperature – Time – Measuring probe – Load sensor – Date/hour – Choice of force units: gram or Newton
Languages
French/English/Russian/Turkish/German/Italian/Portuguese/Korean/Ukrainian
Supply voltage
90-240 VAC 50/60 Hz
Connection
PC: RS232 and USB port
Printer: USB Host Port – Compatible. PCL/5
Security and Confidentiality
An «operator» function allows you to enter a username for your
instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement
conditions.
Dimensions and weight
Head: D610 x W340 X H970 mm
Weight: 27 kg
Fill in the form and our team of experts will recommend the best viscometer and setup based on your requirements.
