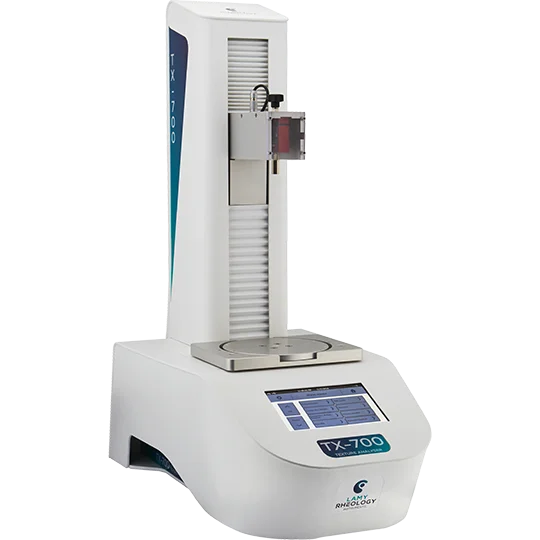

With its wide range of probes and cells, the TX-700 Texture Analyzer is the ideal tool for your texture analysis. Thanks to its touch screen, which directly displays curves, its method programming capability, storage and analysis of measurements, the TX-700 will integrate seamlessly into laboratory and production areas.
£11,254.80 exc. VAT
Reference | Designation |
|---|---|
SSLMY1700 | TX-700 TEXTURE ANALYZER – 10N |
SSLMY1701 | TX-700 TEXTURE ANALYZER – 20N |
SSLMY1702 | TX-700 TEXTURE ANALYZER – 50N |
SSLMY1703 | TX-700 TEXTURE ANALYZER – 100N |
SSLMY1704 | TX-700 TEXTURE ANALYZER – 250N |
SSLMY1705 | TX-700 TEXTURE ANALYZER – 500N |
Our team are on hand to assist you in finding the right solution to meet your specific requirements.
Type of Instrument
Texture Analyzer operating in Compression and Traction with 7” touch screen
Choice of Sensors
10 N (1 kg), resolution 0.001 N (0.1 g) – 20 N (2 kg), resolution 0.001 N (0.1 g) – 50 N (5 kg), resolution 0.001 N (0.1 g) – 100 N (10 kg), resolution 0.001 N (0.1 g) – 250 N (25 kg), resolution 0.01 N (1 g) – 500 N (50 kg), Resolution 0.01 N (1 g)
Speed Range
From 0.1 to 10 mm/s +/- 0.2 %
Accuracy
+/- 0.5 % of the full scale
Motion
Height: 200 mm / Resolution: 0.1 mm
Temperature
Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C.
Display
Strength – Speed – Distance – Temperature – Time – Measuring probe – Load sensor – Date/hour – Choice of force units: gram or Newton
Languages
French/English/Russian/Turkish/German/Italian/Portuguese/Korean/Ukrainian
Supply voltage
90-240 VAC 50/60 Hz
Connection
RS232 and USB port
Security and Confidentiality
An «operator» function allows you to enter a username for your
instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement
conditions.
Dimensions and weight
Head: D610 x W340 X H710 mm
Weight: 25 kg
Fill in the form and our team of experts will recommend the best viscometer and setup based on your requirements.
