For viscosity measurement on large volume.

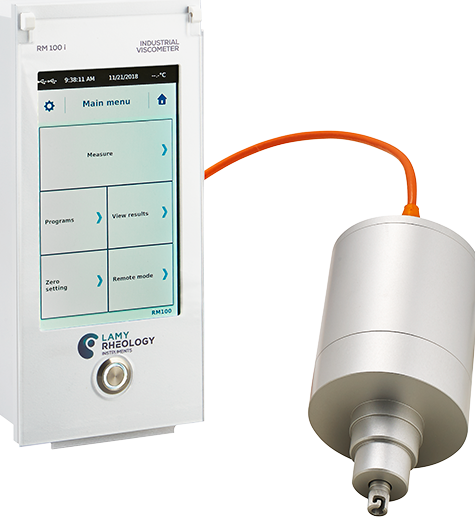

The RM100 I Industrial Viscometer is perfectly suited for so-called immersion use, installing it over a tank or on a support for a measurement in a pot. Only the measuring head is above the product, the electronic box can be installed more than 15 meters in a control cabinet with its 4-20mA output.
£6,294.60 – £7,143.83 exc. VAT
Designation |
|---|
RM 100 i IMMERSION INDUSTRIAL VISCOMETER |
RM 100 i IMMERSION INDUSTRIAL VISCOMETER AC115 |
RM 100 i IMMERSION INDUSTRIAL VISCOMETER WITH PT100 TEMPRATURE SENSOR |
Application
The RM100 i is dedicated to tank measurements for continuous monitoring of viscosity in production. Its 4-20mA analogue output is used to send the measured value to a central computer.
Numerous tailor-made solutions according to the customer configuration for integration into the process (length and height of the plungers,
fixing on the cover of the measuring head with
sealing,…).
Features
+ Measure on large containers.
+ Distance 2 m (up to 17m in option) between measuring head and control box.
+ 4-20 mA output for external control.
+ Programming and saving methods.
+ 1 point and multistep methods.
+ Display viscosity limits according spindle/speed.
+ Compatible printer and RheoTex software.
+ Functions LIMS and QC limits.
Included
2m cable between measuring head and box / 1 Touch screen stylus / 1 User manual / 1 Calibration and checking certificate /
1 Microfiber cloth.
Rotation speeds
Unlimited number of speeds between 0.3 and 1500 rpm
Torque range
From 0.05 to 30 mNm
Accuracy
+/- 1 % of the full scale
Repeatability
+/- 0,2 %
Display
Viscosity (cP / Poises or mPa.s / Pa.s)
Speed – Shear rate – Torque (% – mN
Supply voltage
90-240 VAC 50/60 Hz
Analog output
4 – 20 mA
PC connections
RS232, USB and
Ethernet
Dimensions and weight
Head : Ø 95 mm
Box D140 x H260 x W120
Weight: 3 kg
