Description
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.
Package includes

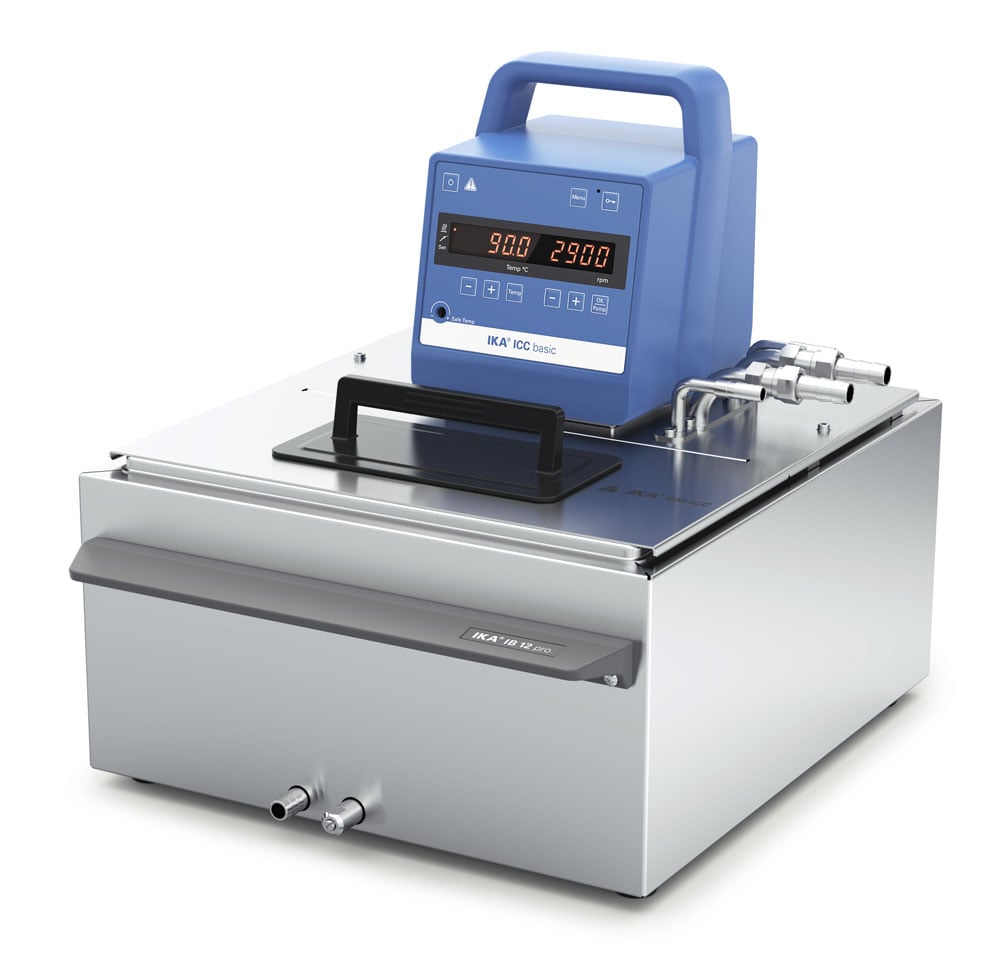

– ICC basic compact immersion circulator
– IB 12 pro stainless steel bath (size M)
– BL.ICC large bridge
– CM.ICC medium cover
– PCS.ICC pump connection set
– CC2 cooling coil
total: 354 x 461 x 388 mm
bath opening: 255 x 127 mm *
max. bath opening: 292 x 147 mm**
Immersion depth. 85 mm–125 mm
*Dimensions to set plate at the bottom of bath.
** Maximum bath opening dimensions at the upper edge of the bath
Max. temperature in the stainless steel bath (“pro” series): 150 °C
Technical data relates to the temperature control instrument included in the package
