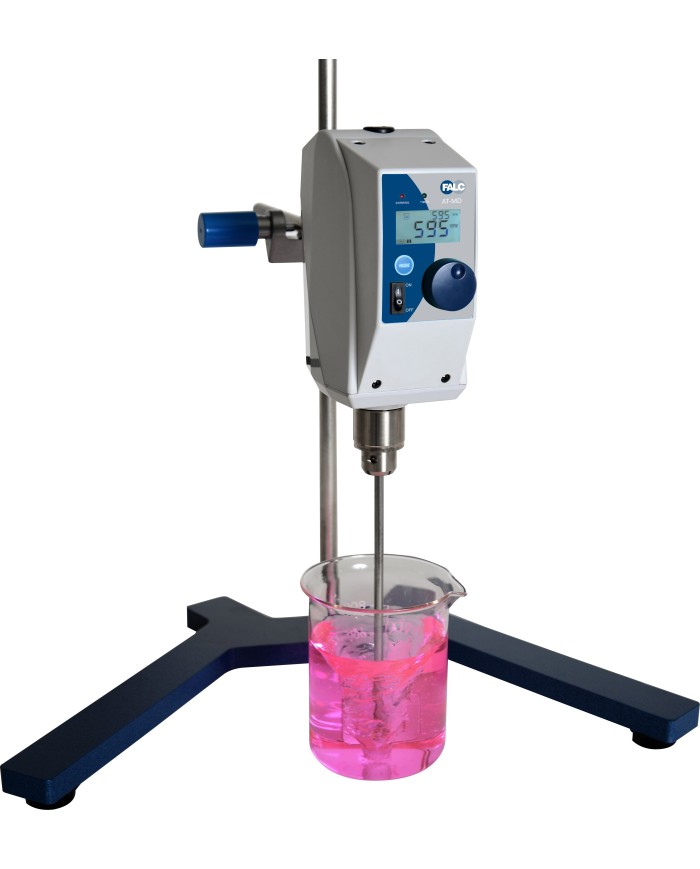

Digital overhead stirrer AT-MD series mechanically stirs liquids with maximum viscosity of 10.000-50,000 mPas up to 10lt-20lt.
Call for Price
It is suitable for routine and continuous works
Digital timer
LCD display
Overload protection and over-heat protection for motor
Adjustable spindle to fix rods
Rod, support, stirring shaft and clamp are not included with instrument. Choose them among accessories according to application.
| Specification | AT-MD 10 | AT-MD 20 |
| Power | V/HZ 230/50-60 | V/HZ 230/50-60 |
| Weight | Kg 4.5 | Kg 5.0 |
| Dimension | mm 90x145x180 | mm 90x145x180 |
| Power supply | W 83/120 75 | W 83/120 120 |
| Protection class | IP 43 – 40 | IP 43 – 40 |
| Display | Digital | Digital |
| Max stirring capacity | Lt 10 | Lt 20 |
| Viscosity | mPas 10000 | mPas 50000 |
| Torque tension | Ncm 85 | Ncm 145 |
| Rod diameter | mm 10 | mm 10 |
| Variable speed | Rpm 200-3000 | Rpm 200-3000 |
Â
