Description
Filter Types | Description |
---|---|
Type A | For organic vapors such as ketones, ethers, alcohols, xylenes… Eventually it can be used for inorganic acids, but only if used in small quantities because this activated carbon is not impregnated and the excess of acid vapors could saturate it quickly. |
Type BE | For inorganic acid vapors as H2SO4, HCl, HNO3, and volatile sulfur compounds such as H2S, SO3, … It can be used with organic vapors because the activated carbon incorporates impregnation of metal compounds and neutralizing salts. It is also suitable to filter organic and inorganic compounds when they are in similar proportions. |
Type F | For formaldehyde vapors and derivatives; also good for other organic compounds. Carbon impregnated with Cu leads, so that it should never be used with inorganic acid vapors. |
Type K | For NH3 vapors and amines; also good for other organic compounds. Carbon with metal salt complexes impregnation. |
Type ABEK | Mixed type to be used when the ratios between organic, inorganic and NH3/amines are similar. |
Type D | HEPA H-14 filter (High Efficiency Particulate Air, according to EN-1822: 1998) for filtering dust and smoke particles. |

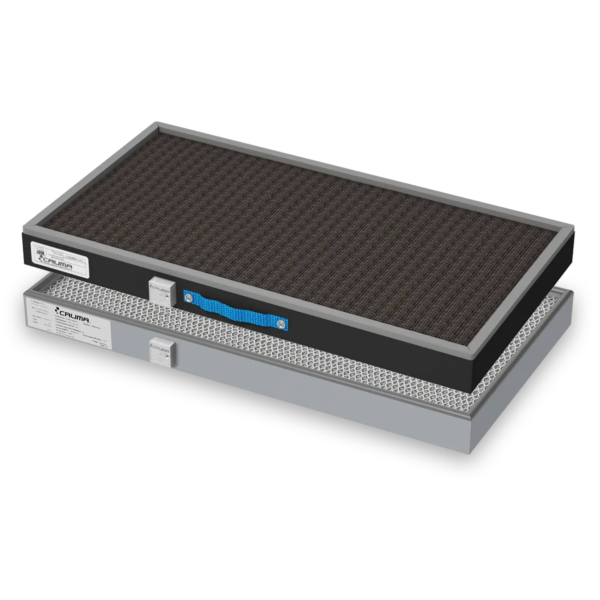

Modular filtration column for gases and particles
CLASS 2 | CLASS 1 | ||
---|---|---|---|
Type G Handling of liquid compounds/products | ![]() | Type 2G Liquid compounds/products handling with security molecular filter | ![]() |
Type GS Handling of liquid and particles compounds/products | ![]() | Type 2GS Liquid and particles compounds/products handling with molecular security filter | ![]() |
Type 2GD Handling of liquid compounds in clean room with molecular security filter | ![]() |
Fan
Molecular Filter
HEPA-H14 Filter
(according to NFX 15-211:2009)
*To view the technical sheets of our filters, please contact our team.
-It is the user’s responsibility to correctly manage the waste generated from filters based on the use given to them and according to the applicable requirements.
-The supply of spare parts is guaranteed during a period of 10 years
