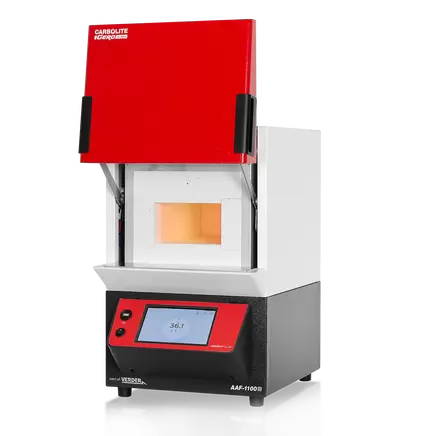

The AAF ashing furnace range is designed specifically to provide optimum ashing conditions to ensure complete combustion of the sample.
The AAF 11/3 & AAF 11/7 ashing furnaces provide a continuous flow of preheated air through the chamber, and are designed to comply with ISO 1171:2010, ASTM D3174-04: 2010 and ASTM D4422.
£2,980.00 exc. VAT
| Max temp (°C) | Heat-up time (mins) | Max continuous operating temp (°C) | Dimensions: Internal H x W x D (mm) | Dimensions: External H x W x D (mm) | Dimensions: External with door open H x W x D (mm) | Dimensions: Height to top chimney (mm) | Volume (litres) | Max power (W) | Holding power (W) | Thermocouple type | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AAF 11/3 | 1100 | 155 | 1000 | 90 x 150 x 250 | 595 x 375 x 495 | 810 x 375 x 540 | 790 | 3 | 2100 | 1270 | K | 22 |
| AAF 11/7 | 1100 | 155 | 1000 | 90 x 170 x 455 | 670 x 435 x 750 | 915 x 435 x 805 | 1070 | 7 | 4000 | 2624 | K | 63 |
Please note
– Holding power is measured at 500°C
– Heat up rate is measured to 100°C below max, using an empty chamber
– Maximum power and heat up times based on a 240V supply
Content may be subject to modifications or corrections
