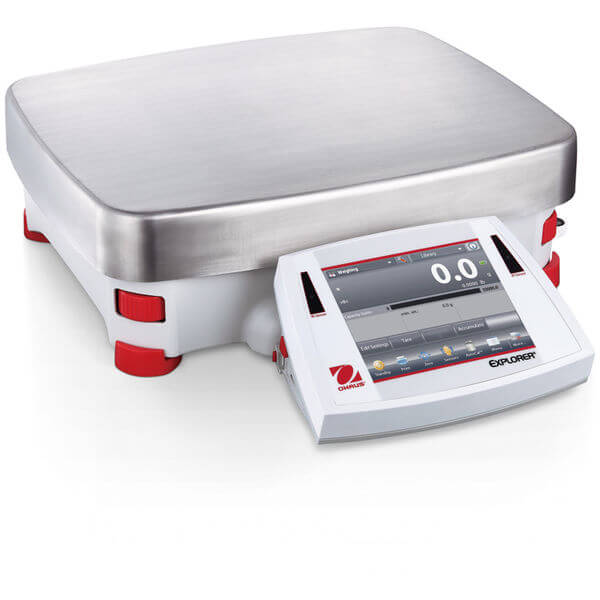

Explorer™ Precision High Capacity – EX12001-EU

£4,115.00 exc. VAT

OHAUS Explorer High Capacity balances provide unmatched functionality in a line of high-performance. high-capacity balances unlike any other on the market! This smart and intuitive balance simplifies even the most complex high-capacity laboratory measurements.

Product Code: SSOHS601 Category:


Flagship Balances from OHAUS

Equipped with a weighing cell that’s precision-machined from a solid metal block. Explorer balances are extremely accurate and durable. and are ideal for laboratory and industrial environments.

2-D shock protection and IP54 base enclosure protect the balance from damage. while the AutoCal™ automatic internal calibration system ensures performance. A detachable terminal with a large color touchscreen and programmable IR sensors make Explorer High-Capacity balances easy and convenient to use.


5.7” (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness


Weighing. Parts Counting. Percent Weighing. Checkweighing. Animal/Dynamic Weighing. Filling. Totalization/Statistics. Formulation. Differential Weighing. Density Determination. Peak Hold. Ingredient Costing. SQC. Statistics


Modular design. IP54 metal base. Die-cast top housing. stainless steel pan. up-front level indicator. integral weigh below hook. calibration lock. two touchless sensors. full housing in-use cover

Design Features

Selectable environmental filters. auto tare. user selectable span calibration points. software lockout and reset menu. user selectable communication settings and data print options. user definable project and user IDs. auto standby. up to 14 operating lan

Communication: RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Operation: AC Adapter (included) or rechargeable battery (accessory sold separately)
Maximum Capacity: 12.000 g
Readability: 0.1 g
Pan Size: 14.8 in x 12.2 in (377 mm x 311 mm)
Internal Calibration: AutoCal™ – Automatic
Dimensions: 17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) (LxHxW)
Battery Life: 10 Hours with Rechargeable Battery
Legal for Trade: Not applicable
Auxiliary Display Model: Available as an Accessory
Tare Range: To capacity by subtraction
Working Environment: 50°F – 86°F. 85%RH. non-condensing (10°C – 30°C. 85%RH. non-condensing)
Net Weight: 22 lb (10 kg)
Inuse cover: Included
Communication: Ethernet (Available as an Accessory);USB (Included);RS232 (Included)
Power: Rechargeable Battery (Not Included);AC Power (Included)
Minimum Weight (USP. 0.1%. typical): 210 g
Display: Full-color 5.7 in VGA. touch screen
Pan Construction: Stainless Steel
Stabilization Time: 1 s
Repeatability. typical: 0.1 g
Linearity: 0.2 g
